Description

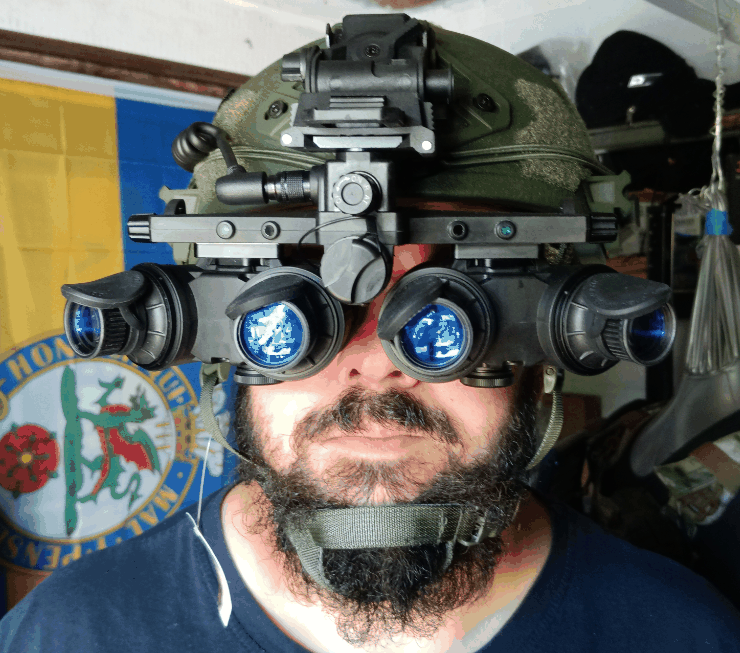

4 way night vision goggles NVG Quad Tactical Helmet Mounted Night Vision Goggles for SAFRussian made Gen 2 3 tubes (from Novospectr, Shvabe) With the new technology, Detyl developed a new Ground Panoramic Night Vision Goggles which called DTG 18N, The purpose of the DTG 18N is to provide the operator more information under goggles, allowing him to more quickly move through the OODA Loop (Observe, Orient, Decide, Act). The most striking feature of the DTG 18N is the presence of four separate image intensifier tubes with four separate
Russian made Gen 2/3 tubes
(from Novospectr, Shvabe)
With the new technology,
Detyl developed a new Ground Panoramic Night Vision Goggles which called DTG-18N, The purpose of the
DTG-18N is to provide the operator more information under goggles, allowing him to more quickly move through the OODA Loop
(Observe, Orient, Decide, Act). The most striking feature of the DTG-18N is the presence of four separate image intensifier tubes
with four separate objective lenses arrayed in a panoramic orientation. The center two lenses point forward like traditional
dual-tube goggles, giving the operator more depth perception, while two more tubes point slightly outward from the center to
increase peripheral view. The two tubes on the right and the two on the left are spliced at the eyepieces. The operator sees the
two center tubes somewhat overlapping the two outer tubes to produce an unprecedented 120° FOV. This is an absolute game-changer
for the SOF community. The two right and two left tubes are housed in merged assemblies and are hung from a bridge, giving
operators interpupillary adjustment options. They can also be easily removed and operated as independent handheld viewers. The IPD
of the two system can be adjusted on the helmet mount.
DTG-18N is to provide the operator more information under goggles, allowing him to more quickly move through the OODA Loop
(Observe, Orient, Decide, Act). The most striking feature of the DTG-18N is the presence of four separate image intensifier tubes
with four separate objective lenses arrayed in a panoramic orientation. The center two lenses point forward like traditional
dual-tube goggles, giving the operator more depth perception, while two more tubes point slightly outward from the center to
increase peripheral view. The two tubes on the right and the two on the left are spliced at the eyepieces. The operator sees the
two center tubes somewhat overlapping the two outer tubes to produce an unprecedented 120° FOV. This is an absolute game-changer
for the SOF community. The two right and two left tubes are housed in merged assemblies and are hung from a bridge, giving
operators interpupillary adjustment options. They can also be easily removed and operated as independent handheld viewers. The IPD
of the two system can be adjusted on the helmet mount.
NOTICE: LEAD TIME IS 2-3 WEEKS AS WE DO NOT KEEP UNITS IN STOCK DUE TO LOW SALE NUMBERS BUT COMPARED TO USA 6 MONTHS WAITING LIST WE ARE FASTER
The DTG-18N is not only powered by a battery on the device, but also by a remote battery packs, tethered to the unit via a
standard DC cable. It comes with a pack that accepts four 3-Volt CR123A batteries that tend to power the unit for 50-80 hours (IR
off). The remote battery pack provides a secondary function as a counterweight, which is needed considering the goggle weighs
about 880g.
Product Usage
|
Model
|
DTG-18N
|
|
Structural mode
|
helmeted turnover four-eyed NVG
|
|
Battery type
|
Lithium battery (cr123Ax1) / cr123Ax4 external battery pack
|
|
Power supply
|
2.6-4.2V
|
|
Installation
|
Head mounted(standard American helmet interface)
|
|
Control mode
|
ON/IR/AUTO
|
|
Over power consumption
|
<0.2W
|
|
Battery capacity
|
800-3200maH
|
|
Battery life
|
30-80H
|
|
Magnification
|
1X
|
|
FOV(°)
|
120x50 +/-2 °
Horizontal 120+/-2 ° Vertical 50 +/-2 ° |
|
Parallelism of optical axis
|
<0.1°
|
|
IIT
|
gen2+ / gen 3
|
|
GAIn
|
Auto
|
|
Lens system
|
F1.18 22.5mm
|
|
MTF
|
120LP/mm
|
|
Optical distortion
|
3% Max
|
|
Relative Illumination
|
>75%
|
|
Coating
|
Multilayer broadband coating
|
|
Focus range
|
250mm-∞
|
|
Focus mode
|
Manual focus facility
|
|
eye relief
|
30mm
|
|
Pupil diameter
|
8mm
|
|
Visibility range
|
-1(+0.5~-2.5)
|
|
IPD adjust type
|
Arbitrary continuously adjustable
|
|
IPD adjust range
|
50-85mm
|
|
IPD lock type
|
Manual lock
|
|
IR
|
850nm 20mW
|
|
Working temperature range
|
-40--+55ºC
|
|
Humidity range
|
5%-95%
|
|
Waterproof
|
IP65/IP67
|
|
Dimensions
|
155x136x83mm
|
|
Weight
|
880G(without battery)
|
